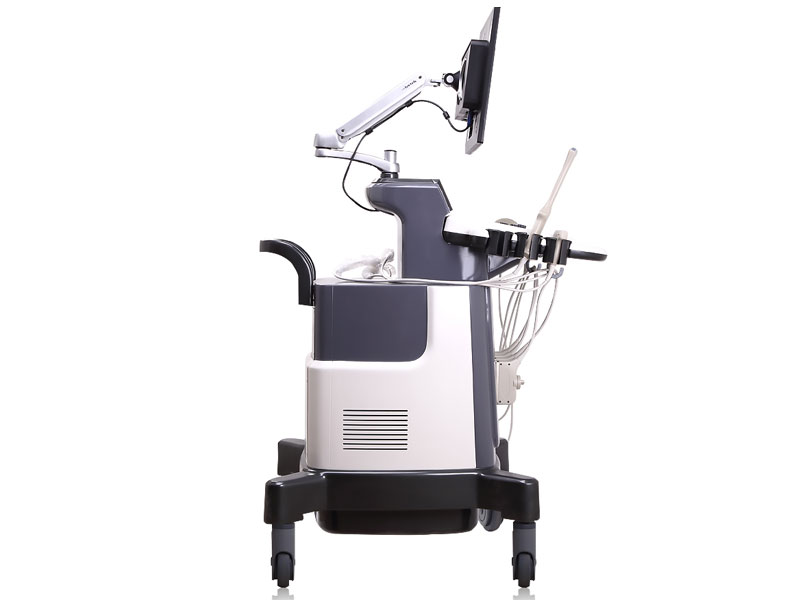

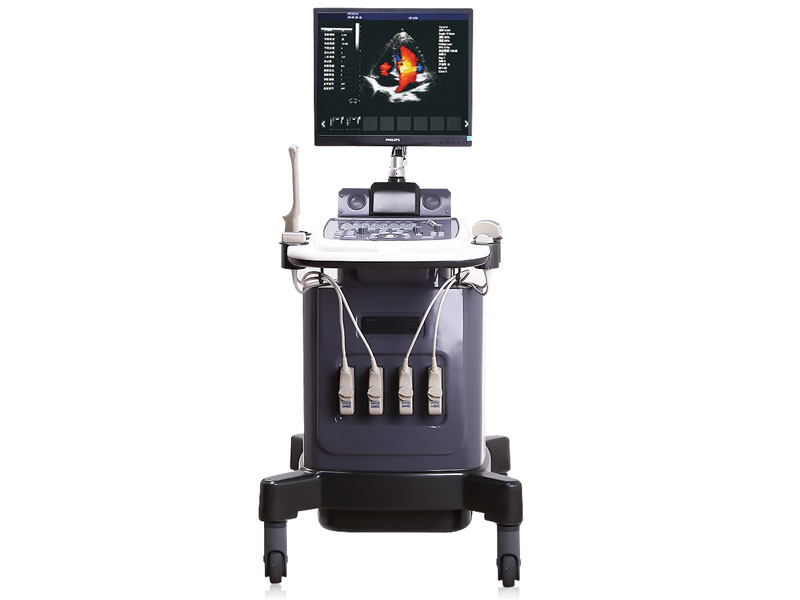

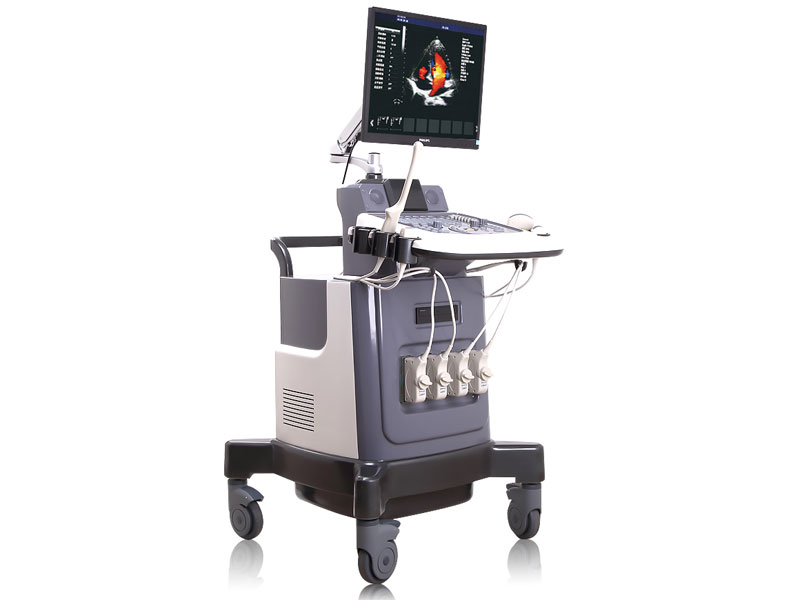

PL-6018II Trolley Color Doppler

Technical Parameters :
Display:15” LCD monitor
Gray scale:256
Probe frequency:2.0-12Mhz
Mode:B, BB, 4B, left & right B/M, M, PW, B/D, CFM, B/C, BC/B, B/BC
Share With:


    APPLICATION: hospitals, clinics, health care centers, universities and etc .

    Examination parts : abdominal, obstetrics, gynecology, regional nerve block, uterus / adnexa, eyeball, testicle, bladder, breast, small parts, nerve, vascular, venous access musculoskeletal and etc .


Electronic focusing + acoustic lens focusing.
Transmission focus: single focus, double focus, 3-focus and 4- focus.
Continuously dynamic focusing mode is used for front end reception.

Software Package:
Basic measurement package, obstetrics measurement package, andrology measurement package, gynecology measurement package, urology measurement package, vascular measurement package, small parts package, orthopedic measurement package, cardiac measurement package.

Measurement and Calculations:
B-mode basic measurements: distance, angle, perimeter and area (ellipse method, track method), volume histograms, cross section.
M-mode basic measurements: heart rate, time, distance, speed.
Doppler measurement: time, heart rate, speed, acceleration.

Memory Function :
Probe parameters memory
Image memory
Cine memory
Measurement result memory
Report memory


Display: 15” LCD monitor.
Gray scale: 256.
Probe frequency: 2.0-12Mhz.
Mode: B, BB, 4B, left & right B/M, M, PW, B/D, CFM, B/C, BC/B, B/BC.
Duplex: real-time simultaneous 2D, Doppler, frequency simultaneously in three modes cape real-time status.
Cine-loop: 1000 frame cine loop memory.
Storage media: 64G massive image-storage capacity.
Machine dimension (mm): 920*550*1450
USB ports: video, S-video, VGA, 4 USB ports.
Probe connector: 2 active transducer connector ports.
Power supply: (AC)220V±22V 50Hz±1Hz.


Standard Configuration :
Scanner Body: 1pc

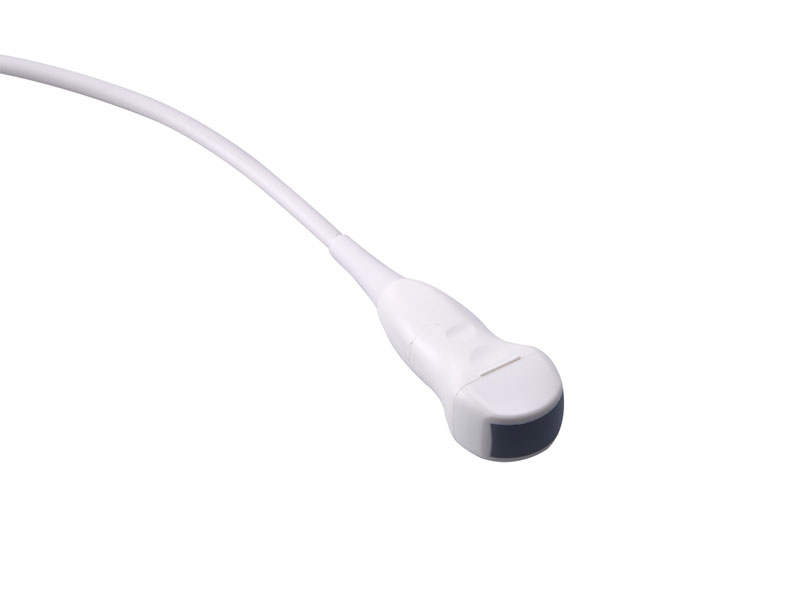

3.5Mhz Convex Probe: 1pc
Charger with a Set of Wires: 1set
Bottle of USG gel: 1pc
User Manual: 1pc

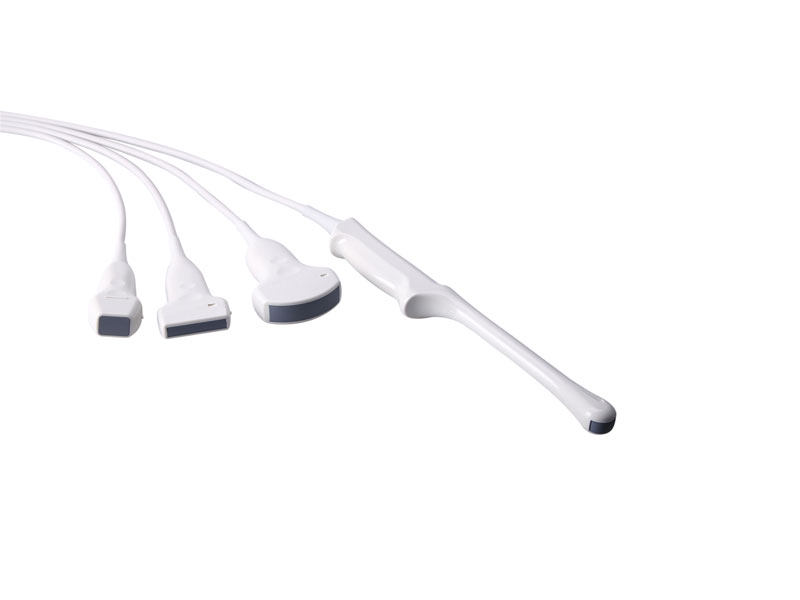

Optional :
5.0Mhz Micro-convex Probe
6.5MHz Trans-vaginal Probe
7.5Mzh Linear Probe
