Application
APPLICATION: hospitals, clinics, health care centers, universities and etc .
Examination parts : abdominal, obstetrics, gynecology, regional nerve block, uterus / adnexa, eyeball, testicle, bladder, breast, small parts, nerve, vascular, venous access musculoskeletal and etc .
Feature

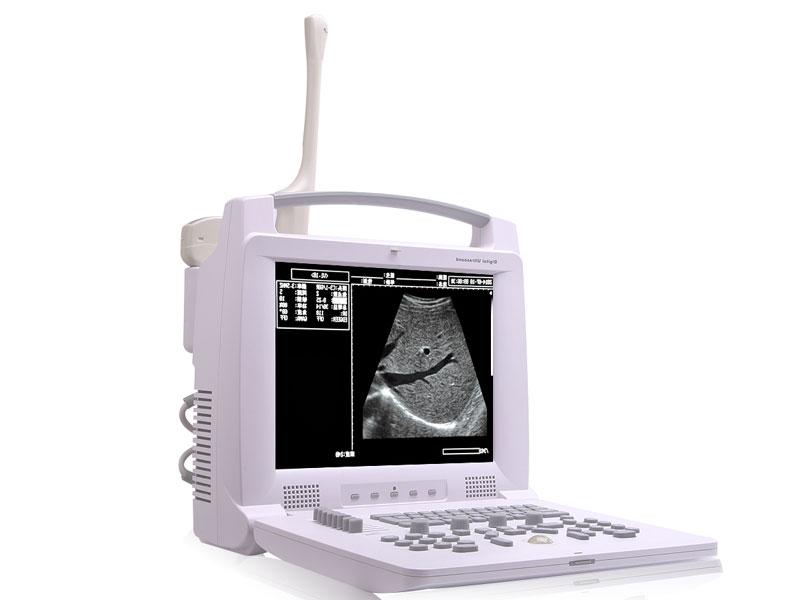

This equipment is convex linear ultrasound scanning diagnostic system with high resolution.
It applies micro-computer control and digital scan converter (DSC), digital beam-forming(DBF),
real time dynamic aperture (RDA),real time dynamic receiving apodization, real time dynamic receiving focusing(DRF),
digital frequency scan (DFS),8 segments digital TGC, frame correlation technologies to endue its image with clarity, stability and high resolution.
Parameters
Display depth (mm): 240 (max),16 levels adjustable.
Monitor size:12 inch.
Probe elements : 96.
Display mode: B、B+B、B+M、M、4B.
Image gray scale:256 level.
Cine loop: 809 frame (Max).
Image storage: 32 frames.
Scan angle: Adjustable.
Scan depth: 40mm-240mm.
Acoustic power: 2 steps.
Dynamic range: 100dB-130dB.
Image flip: Up/down, left/right, black/white.
Focus position: Adjustable.
Focal space: 5 level.
Measurement: Distance, circumference, area, volume, heart rate, GA, FW, EDD.
Notation: Date, time, name. sex, age, doctor, hospital name. Full screen words edit.

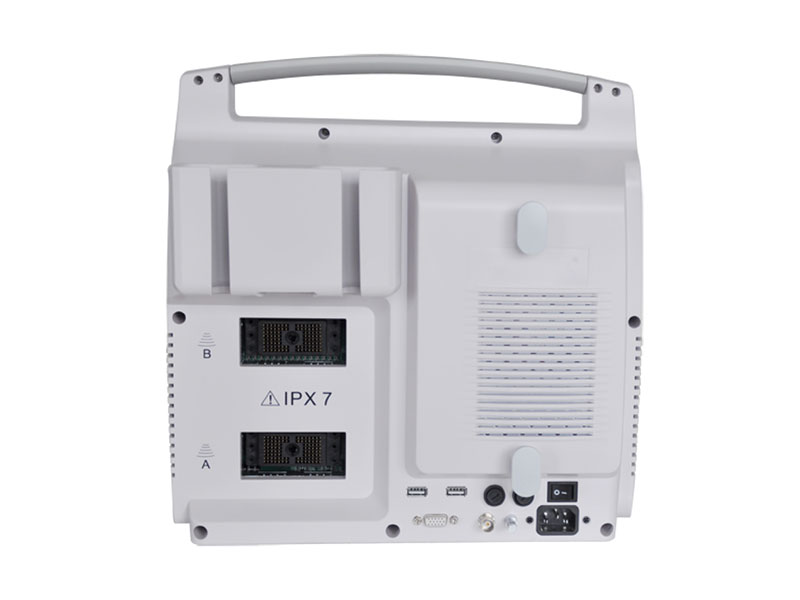

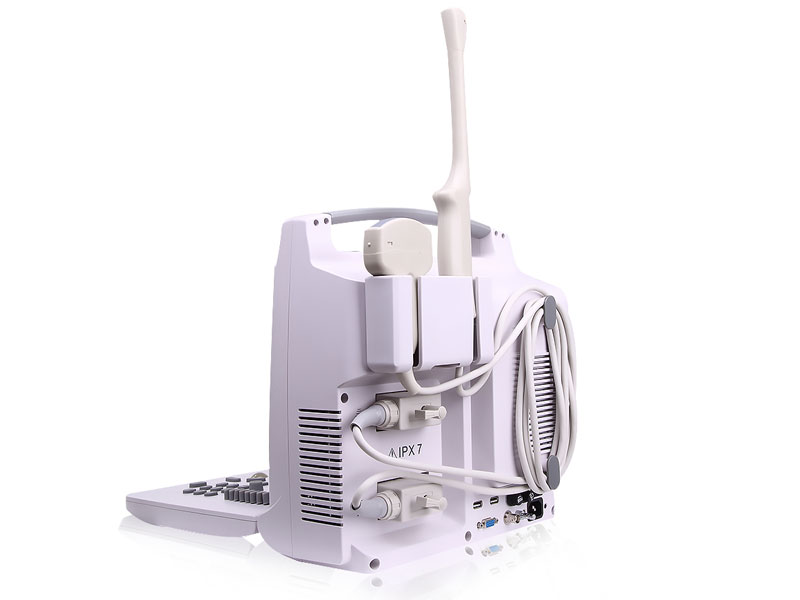

2- probe connectors
Output report: 2 type.
Posture mark: ≥40.
Video output: PAL-D, VGA.
Power Supply: AV220V±22V, 50MHz±1MHz.
Machine dimension (mm): 320*165*290
Configuration
Standard Configuration:
Scanner Body: 1pc
3.5Mhz Convex Probe: 1pc
Charger with a Set of wires: 1set
Bottle of USG gel: 1pc
User Manual: 1pc
Optional:
5.0MHz Micro-convex Probe
6.5MHz Trans-vaginal Probe
7.5MHz Linear Probe
Video Printer

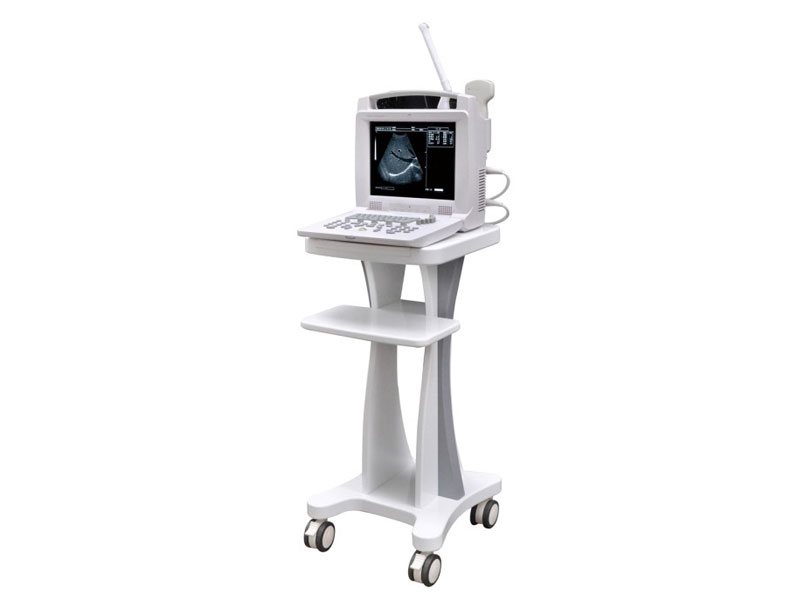

Trolley
