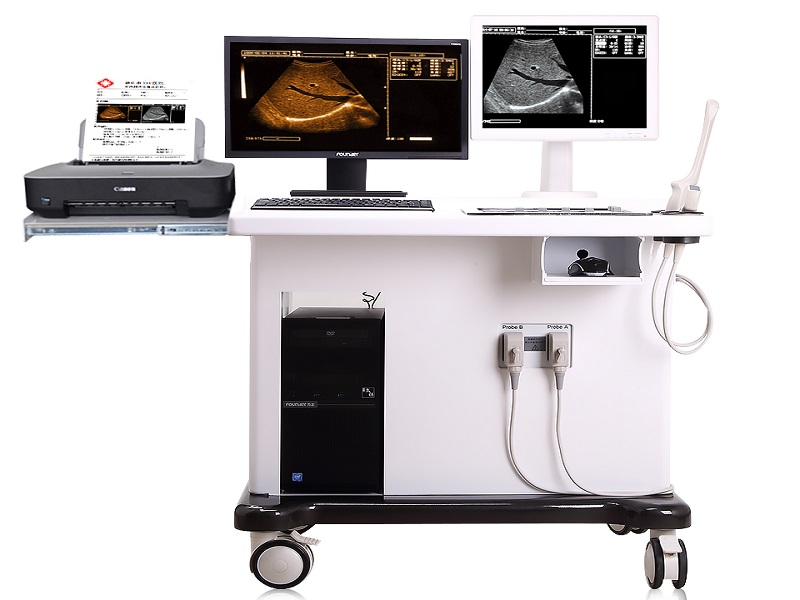

PL-3018CIV Digital Trolley Ultrasound Scanner with Workstation

Technical Parameters :
Detecting depth:≥ 220mm
Display mode:B, B+B, B+M, M, 4B
Gray Scale:256
Image amplification:×1.0, ×1.2, ×1.5, ×2.0
Share With:
SEND EMAIL GET PRICE

Application

    APPLICATION: hospitals, clinics, health care centers, universities and etc .

    Examination parts : abdominal, obstetrics, gynecology, regional nerve block, uterus / adnexa, eyeball, testicle, bladder, breast, small parts, nerve, vascular, venous access musculoskeletal and etc .

Parameters

Ultrasound scanner Specifications:
Specifications:
Ultrasound scanner with 15” LCD monitor.
Detecting depth:≥ 220mm.
Display mode: B, B+B, B+M, M, 4B.
Gray Scale: 256.
Image amplification: ×1.0, ×1.2, ×1.5, ×2.0.
Local zoom: 2 times.
Electronic focusing: 4 focuses combination randomly.
Measurement: distance, circumference, area, heart rate, gestational week, fetal weight etc.
Annotation: time, date, ID, age, sex, detecting depth, probe type, focus, frame correlation etc.
English-Chinese conversion.
Cine-loop:341.
Image load/storage: 32.
Obstetric table: BPD; CRL; GS; FL; AC; HC; FW; EDD.
Body marks: 40 types.
Power Supply: 100V~130V/220V~240V, 50/60Hz.
Dimensions(cm): 91*76*92 (main unit carton ); 40*35*37 ( CRT monitor carton ).

Imaging workstation specification:
Main board : Gigabyte G31M.
CPU: INTEL Celeron 430 1.8MHz.
EMS memory: Kingston800 1G.
Hard disk: Western Digital 160G.
Monitor: 19 LCD.
Electromechanical: phillips+ GREATWALL.
Keyboard: Lisheng.
Mouse: Duble Swallow Optical mouse.

Configuration

Standard Configuration:
Ultrasound Scanner with 17" CRT Monitor: 1pc
Image Workstation: 1pc
3.5MHz Convex Probe: 1pc
6.5MHz Trans-vaginal Probe: 1pc

Optional probes:
7.5 MHz Linear Probe
Video printer and Ink-jet printer
