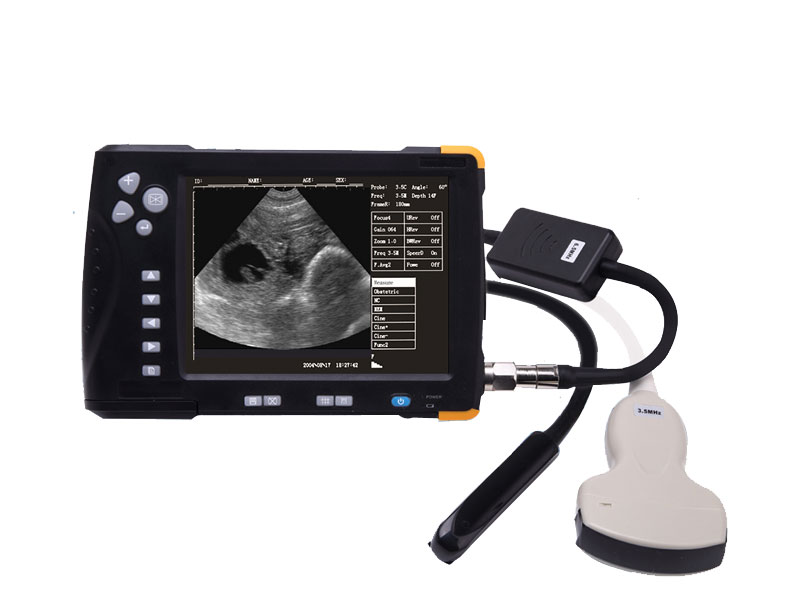

PL-4018V Waterproof Veterinary Ultrasound Scanner/Machine

Technical Parameters :
Detect Depth(mm):≥50
Resolution(mm):Lateral, ≤2(depth≤80); Axial, ≤1(depth≤80)
Blind zone(mm):≤3
Geometric position precision:Horizontal≤5; Vertical≤5
Share With:


    Mainly Application : swine , sheep , bovine , equine , camel , alpaca , dog , cat , rabbit and etc .


Image smoothing, filtering, edge enhancement, frame correlation, linear interpolation and other processing, the image is crisp and clear, high resolution.
Measured for distance, perimeter, area, obstetric and etc.
Individually adjustable near field, far field gain (5 stage adjustable).
Single-B display, continuous real-time status in the field of vision to move the function.
With display playback, gamma correction, histogram and other image processing functions.
With built-in memory, and has an external USB interface, the built-in memory data transfer to PC.
Light weight and convenient.


Monitor size: 7”-TFT
Detect Depth(mm): ≥50
Resolution(mm): Lateral, ≤2(depth≤80); Axial, ≤1(depth≤80)
Blind zone(mm): ≤3
Geometric position precision: Horizontal≤5; Vertical≤5
Display mode: B, B+B, B+M, M, 4B
Image gray scale: 256
Scan range: convex array, linear array
Scan lines: 512 lines/ frame
Frame rate: 30 frame/second
Digital scan converter: 512x512x8bits
Body marks: ≥15
Multi-frequency: 2MHz-10MHz
Memory capacity: ≥2GB
Video output: PAL
Battery: 3000Mah/7.4V
Battery continuous work: ≥3 hours
Machine dimension: 228mm x 152mm x 37mm
N.W: 900G


Standard Configuration :
Scanner Body: 1pc

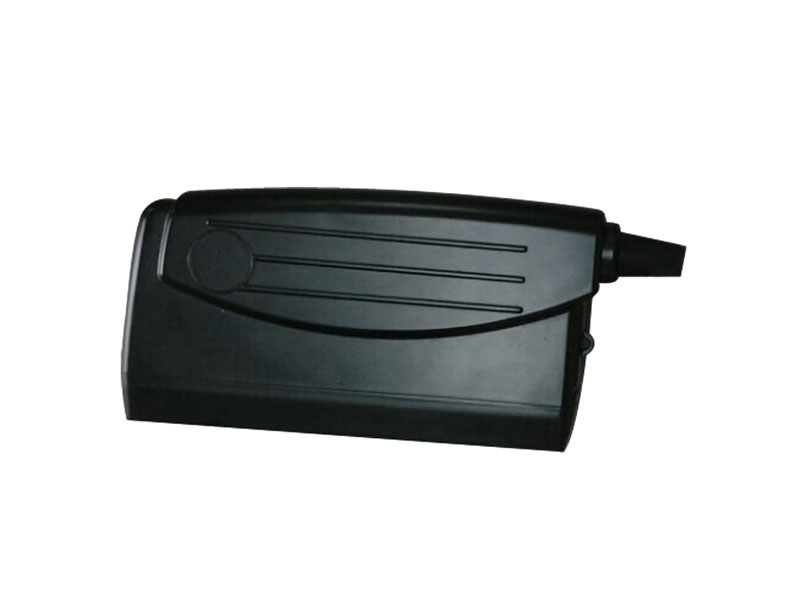

Li-ion Battery: 1pc

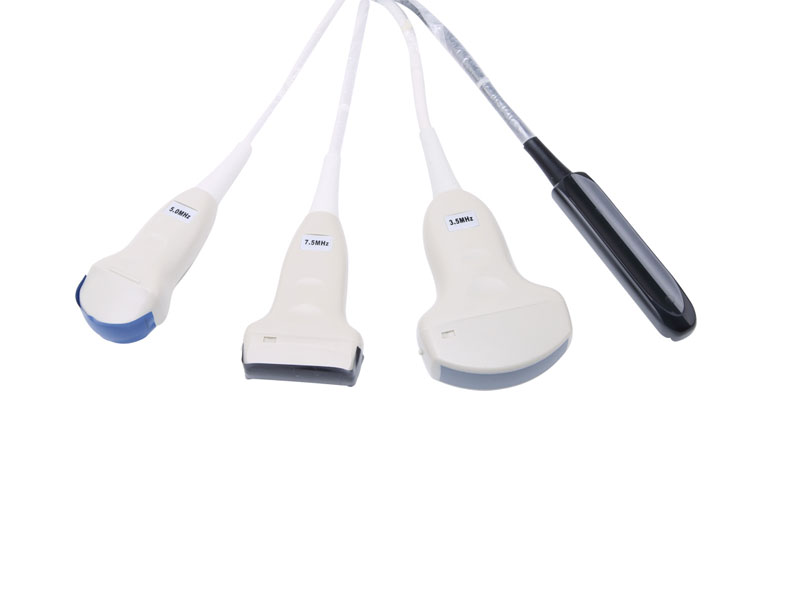

3.5MHz Convex Probe: 1pc
Charger with a Set of Wires: 1set
Wrap Bag: 1pc
Bottle of USG gel: 1pc
Transportation Case: 1pc
User Manual: 1pc

Optional :
7.5MHz Linear Probe
6.5MHz Rectal Probe
5.0MHz Micro-convex Probe
Back-fat Probe
Video Printers
Video Goggles
Video Wire
