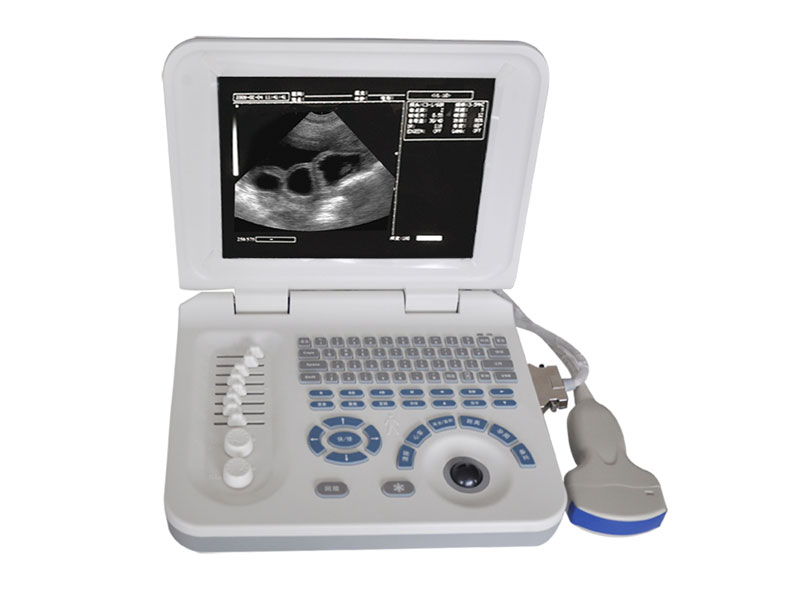

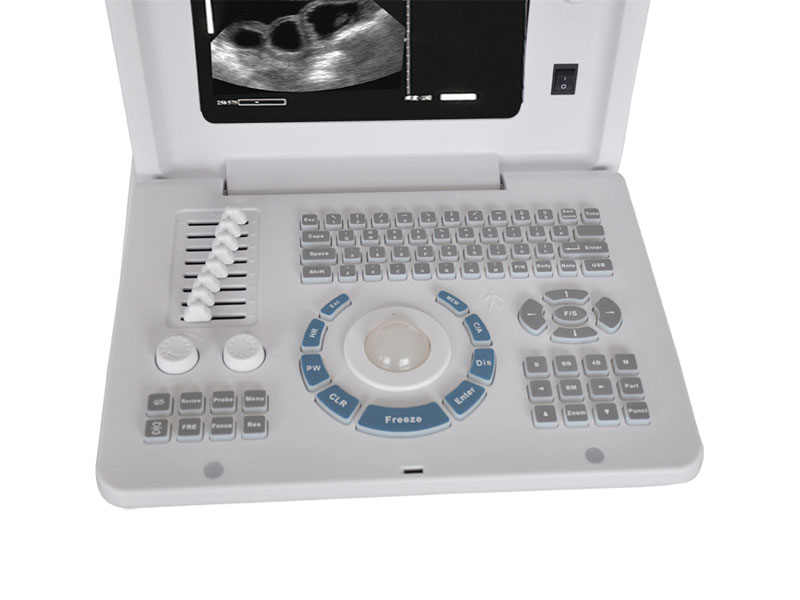

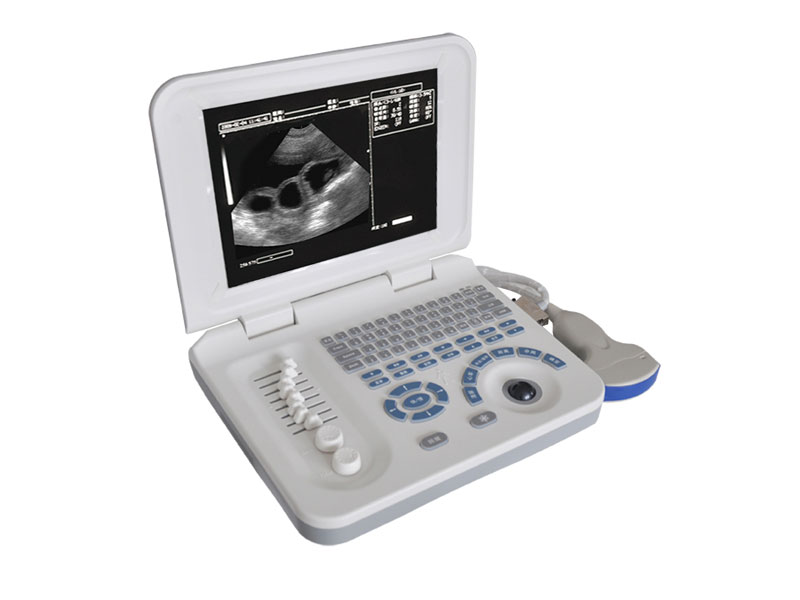

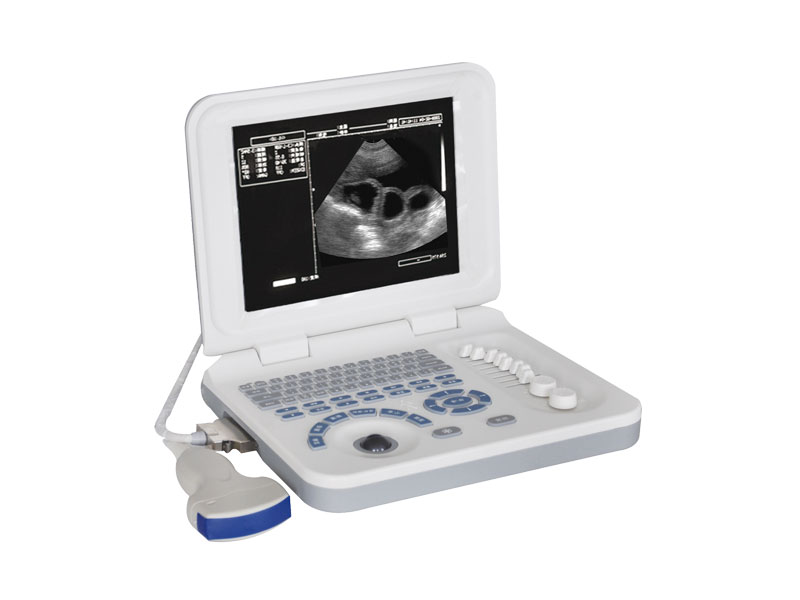

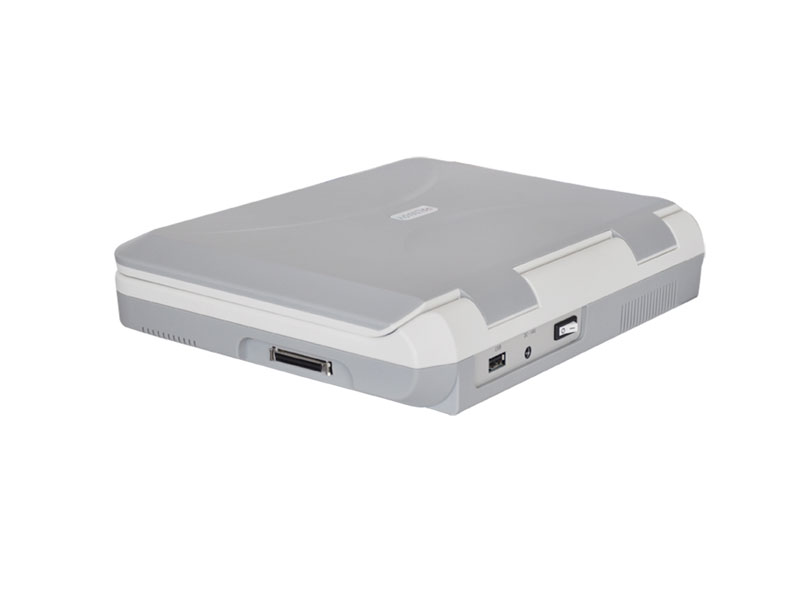

PL-3018VL Veterinary Laptop Ultrasound Scanner/Machine

Technical Parameters :
Detect Depth(mm):≥140
Blind zone(mm):≤3
Monitor size:5 inch
Display mode:B, B+B, B+M, M, 4B
Share With:

Application

    Mainly Application : swine , sheep , bovine , equine , camel , alpaca , dog , cat , rabbit and etc .

Parameters

Display Mode: B, B/B, 4B, B+M, M.
Magnification: ×0.8, ×1.0, ×1.2, ×1.5, ×1.8, ×2.0.
Scanning depth: ≥ 170mm.
Blind area: ≤4mm.
Pre-treatment: variable aperture, dynamic apodization, dynamic digital filtering.
After treatment: 8 types γ correction, line correlation, frame correlation, point-line correlation, linear interpolation,
digital temporal filtering, digital enhancement Crochet, pseudo-color processing.
Dynamic range: 0~120dB adjustable.
Monitor: 10.8 inch LCD high-resolution.
Grey scale: 256.
Measuring function: Distance, perimeter, area, volume, ellipse measurement, heart rate, gestational weeks (BPD, GS, CRL, FL, HL, etc), expected date of confinement and so on.
Annotation: hospital name, patient’s name, gender and age, full-screen character annotation, real-time clock display.
Body marks: 8.
Puncture guide: displayed under B mode.
Gain control: 8 segments TGC and full gain can be adjusted respectively.
Image reverse: left/right, black/white, up/down.
Cine loop: 256.
Permanent storage: 128.
Image display: continuous playback, pieces of view Video
Output interface: SVGA, PAL, video recorder and Image workstation and etc, USB output.
Power: AC 220V±22V 50Hz
Input power: ≤ 300VA
Continuous work hours: ≥ 8h

Configuration

Standard Configuration :
Scanner Body: 1pc
3.5MHz Convex probe: 1pc
External li-ion Battery: 1pc
Charger with a Set of wires: 1set
Handy bag: 1pc
Bottle of USG gel: 1pc
Transportation Case: 1pc
User Manual: 1pc

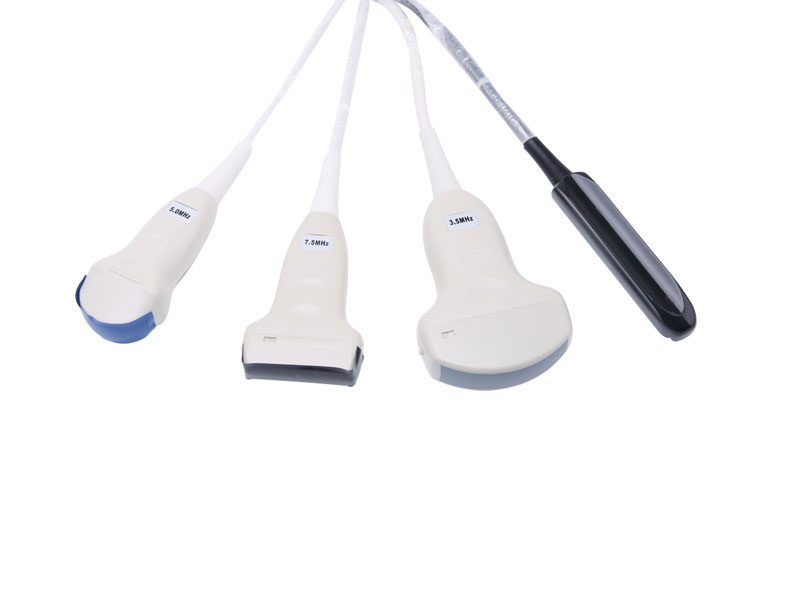

Optional :
7.5MHz Linear Probe
6.5MHz Rectal Probe
5.0MHz Micro-convex Probe
Video Printer
