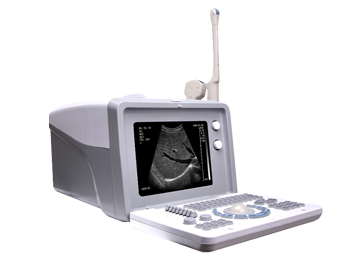

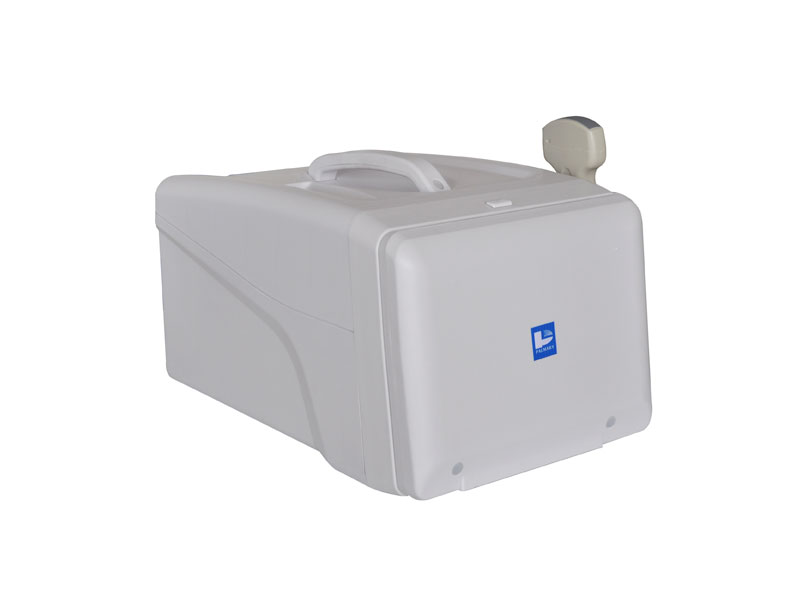

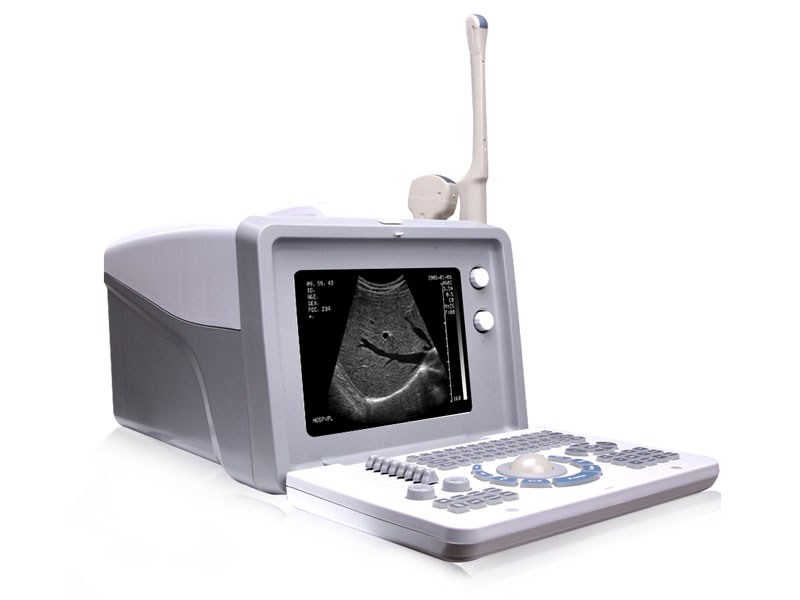

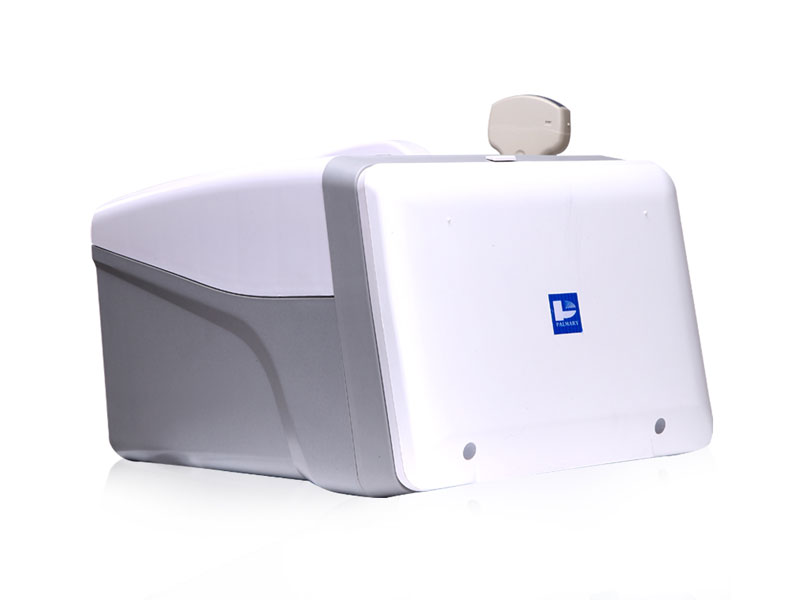

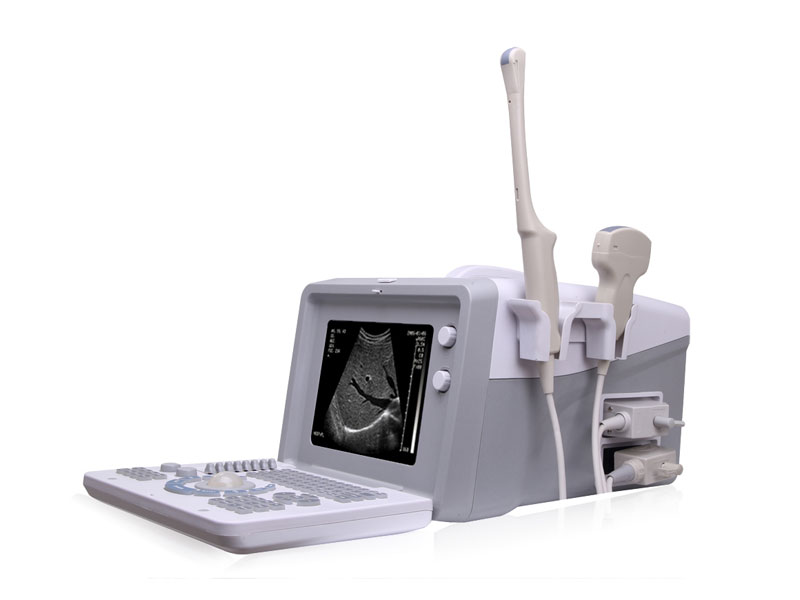

PL-2018CI Digital Portable Ultrasound Scanner

Technical Parameters :
Monitor size:10 inch SVGA high resolution monitor
Display mode:B, 4B,B/B, B+M, M
Image mode:x0.8, x1.0, x1.2, x1.5, x1.8, x2.0
Image gray scale:256
Share With:

Application

    APPLICATION: hospitals, clinics, health care centers, universities and etc .

    Examination parts : abdominal, obstetrics, gynecology, regional nerve block, uterus / adnexa, eyeball, testicle, bladder, breast, small parts, nerve, vascular, venous access musculoskeletal and etc .

Feature

This machine is using the 3.5MHz convex probe, the digital beam forming (DBF),
real-time dynamic aperture imaging (RDA), real-time dynamic sound velocity apodization (DRA), real-time dynamic launch Pixel Focus (DTR), real-time dynamic receiving focusing point by point (DRF), CNC dynamic frequency sweep (DFS), 8-segment digital TGC, dynamic digital filtering, image enhancement, line correlation, frame correlation, point correlation, linear interpolation and other kinds of image processing.

Parameters

Monitor size: 10 inch SVGA high resolution monitor
Display mode: B, 4B,B/B, B+M, M
Image mode: x0.8, x1.0, x1.2, x1.5, x1.8, x2.0
Image gray scale: 256
Dynamic range: 0-120dB
Image permanent storage:128
Cine loop: ≥256 frames
Scan depth: ≥220mm
Image flip: Up/down, left/right, black/white
Focus position: Dynamic digital electronic focus point by point.
Posture mark: 64, with probe position
Puncture guide: B-mode image having a puncture guide line display
Pre-treatment: variable aperture, dynamic apodization, dynamic digital filtering
After-treatment: 8 kind of γ correction, line correlation, frame correlation, line correlation point, linear interpolation, digital filtering,16 kinds of pseudo-color processing
Gain Control: 8-segment TGC, respectively, total gain is adjustable
Image process: Histogram, image smooth, pseudo-color, gamma correction
Probe frequency: Adjustable
Measurement: Distance, circumference, area, volume, heart rate, Gestational age (BPD, GS, CRL, FL, HC, OFD, TTD, AC), due date, fetal weight
Notation: Date, time, name, sex, age, full screen words edit and etc
Output report: Measurement

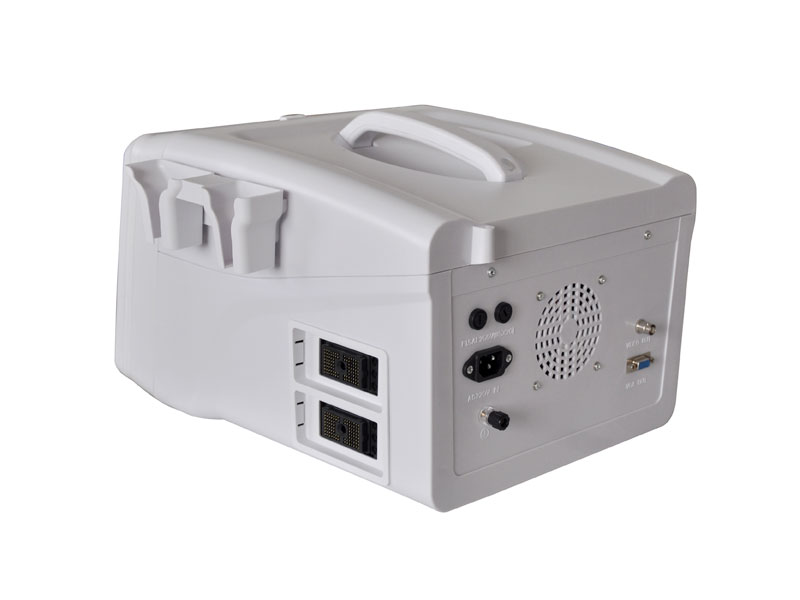

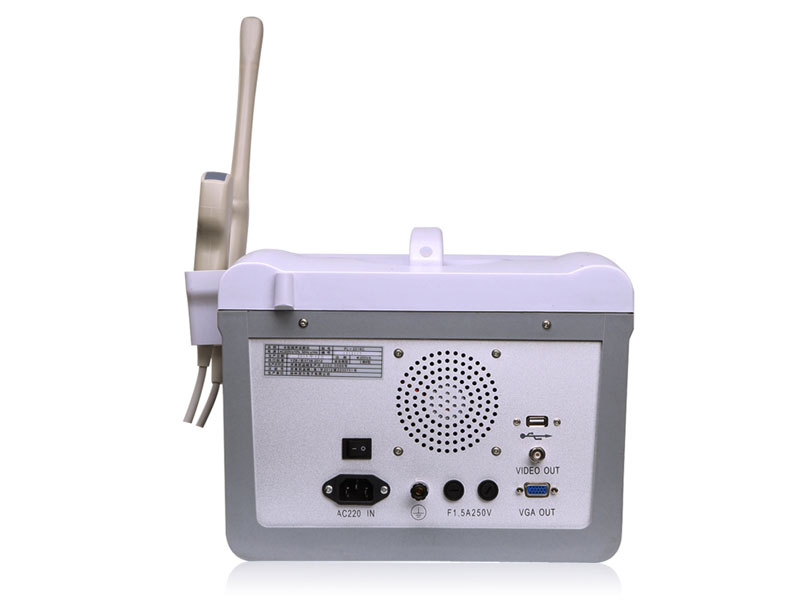

Output port: USB, SVGA, PAL video output, can be connected with the PAL monitor, video recorder, image workstations.
Machine dimension (mm): 380*305*250
N.W: 7kg; G.W: 11kg

Configuration

Standard Configuration :
Scanner Body: 1pc
3.5Mhz Convex Probe: 1pc
Charger with a set of wires: 1set
Bottle of USG gel: 1pc
User Manual: 1pc

Optional :
5.0MHz Micro-convex Probe
6.5MHz Trans-vaginal Probe
7.5MHz Linear Probe
Video printer
